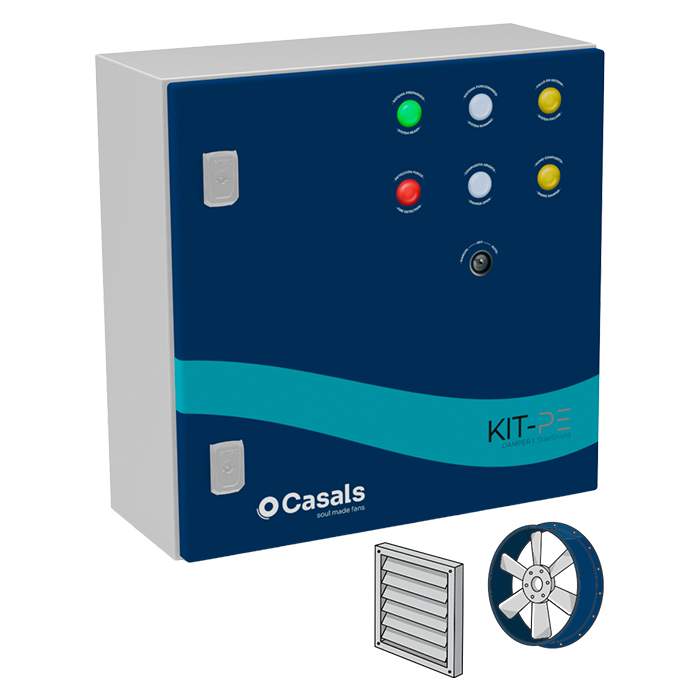

KIT-PE DAMPER 1 STAIRSHIELD (v2)

Stairs pressurization kit to automatically control the differential pressure and maintain it at 30-50 Pa in a single stage in accordance with the UNE-EN 12101-6 standard.

Made up of a control panel (KIT-PE DAMPER 1 STAIRSHIELD (v2)) and a drive unit (any fan for air supply) that will provide the stairs or the escape route with sufficient pressure.
Available for three-phase and single-phase equipment.
The KIT-PE DAMPER 1 STAIRSHIELD (v2) has everything necessary to function autonomously, so the installer's job will be much easier and he will only have to connect the kit to the fan and to the fire detection control panel.
KIT-PE DAMPER 1 STAIRSHIELD (v2) includes a flow sensor to redundantly ensure air circulation in the system and in the correct direction.

The KIT-PE DAMPER 1 STAIRSHIELD (v2) is composed of the following elements:

Variable frequency programmed to maintain constant pressure.
Maximum output frequency: 50Hz
High precision DPT differential pressure probe
Steel frame fitted with a 3mm double bar lock to limit external access. IP66 protection. Complies with IEC 62208, UL, CUL, BV, DNV and GL standards.
Magnetothermic protector.
Line and error led.
Test button.
Operating mode selector.

Kit according to the new regulations (1/2/24) with a fire brigade panel (COMBATOR)

Allows you to control a motorized regulation damper and a fan. In the event of detecting smoke, the damper will close and the fan will stop so that smoke does not enter the stairs.

UNDER REQUEST
Maximum output frequency: 60Hz
