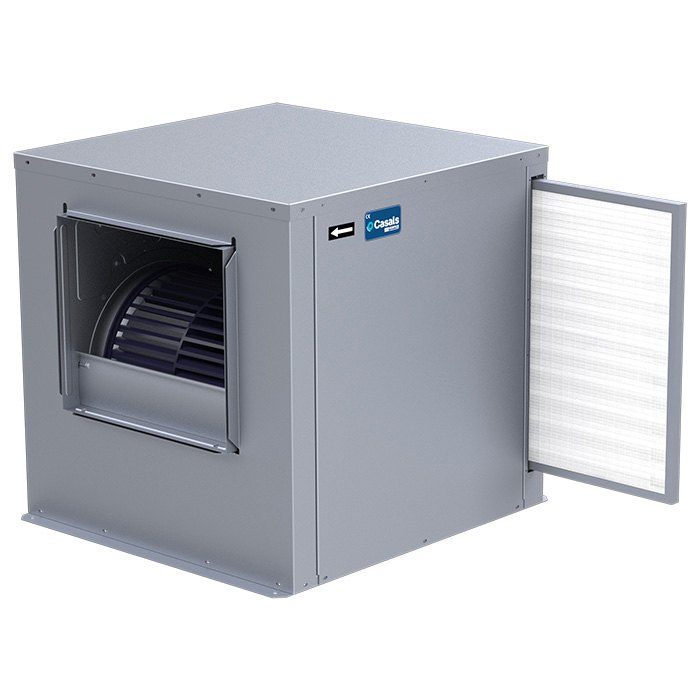

BOX BD FILTER 3V

CENTRIFUGAL IN SOUNDPROOF CABINET WITH FILTER AND 3SPEED MOTOR

MANUFACTURING FEATURES:

• Impellers made of polyamide reinforced with fiberglass.
•BD 3V range fans assembled in soundproof cabinets with thermo-acoustic insulation, Bs1d0 fire class.
• Fan assembled on antivibration mountings.
• Connection gland included.
• Closed 3 speed motor specially designed Casals: extruded aluminum housing, all protected inside the terminal box on the motor IP 65 protection and motor with IP54 protection and Class F insulation standard voltages: 230V 50Hz
• Box with particle filter ISO Coarse≥60% (G4) integrated. Removable filter holder frame from both sides of the box for maintenance. Washable and replaceable filter media. Optimized air intake to maximize performance.

APPLICATIONS:

Designed for inline installation, indoor or outdoor assembly, they are suitable for:
• Air renewal in buildings and industries.
• Industrial and professional kitchen hoods. Use in supply or extraction with prior fat filtering.
• Maximum working temperature: 50ºC.

UNDER REQUEST:

• LG0 position.
• Impellers made of galvanised steel sheet.
