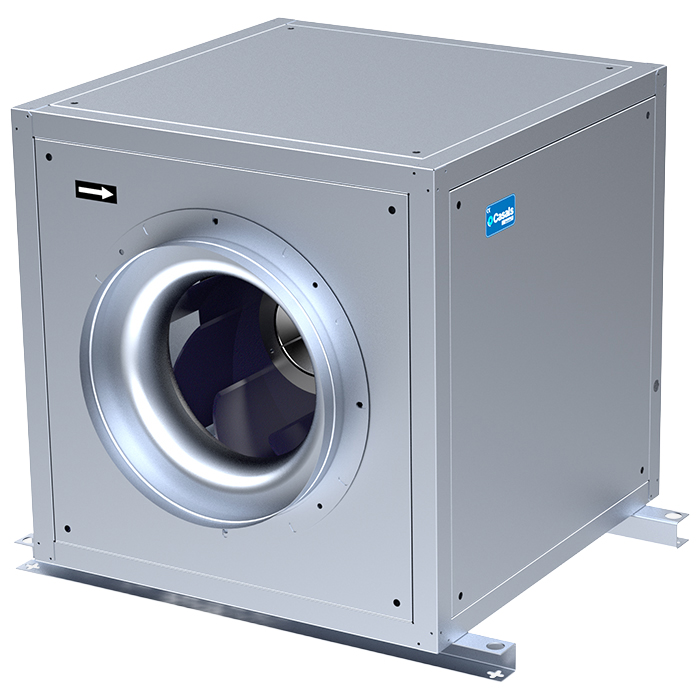

BOX RL

BOX RL

BACKWARD CENTRIFUGAL IN SOUNDPROOF

MANUFACTURING FEATURES

• Box manufactured in galvanised steel sheet.
• Backward impeller with self-cleaning system, direct coupling motor.
• Standard asynchronous squirrel-cage motor with IP-55 protection and Class F insulation.
• Manufactured with standard voltages: 230/400V 50Hz in three phase motors up to 4kW, and 400/690V 50Hz for higher powers.
• Exchangeable pannels.
• Open outlet.

APPLICATIONS

Designed for inline installation, they are suitable for:
• Air renewal in buildings and industries.
• Maximum working temperature: 60ºC.

UNDER REQUEST

• Special voltages.
• Double skin insulation.

Code Name
241670106 BOX RL 630 T4 4kW
241840106 BOX RL 800 T6 4kW
241830106 BOX RL 800 T4 11kW
241460106 BOX RL 450 T4 1,1kW
241520106 BOX RL 500 T4 1,5kW
241600106 BOX RL 560 T4 2,2kW
241660106 BOX RL 630 T6 1,5kW
241770106 BOX RL 710 T4 7,5kW
241760106 BOX RL 710 T6 2,2kW
241390106 BOX RL 400 T4 0,75kW
241440106 BOX RL 400 T6 0,55kW
241470106 BOX RL 450 T6 0,55kW
241540106 BOX RL 500 T6 0,55kW
241620106 BOX RL 560 T6 0,75kW
2416701062V BOX RL 630 T4/T8 4/0.75kW
2415201062V BOX RL 500 T4/T8 1,5/0,3kW
2417701062V BOX RL 710 T4/T8 7,5/1,5kW
2416001062V BOX RL 560 T4/T8 2,2/0,45kW
