BT-3 EEC

BT-3 EEC

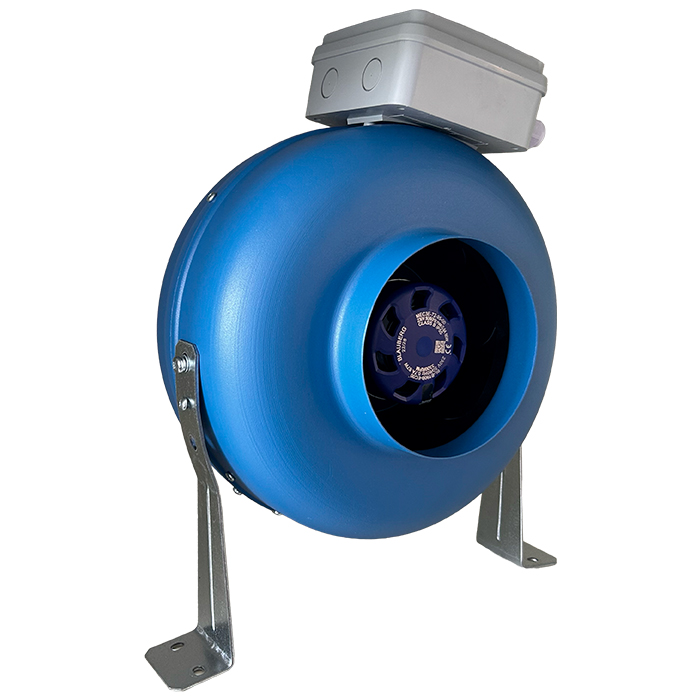

CENTRIFUGAL FAN IN STEEL CASING WITH ELECTRIC MOTOR EEC

MANUFACTURING FEATURES

·Casing made of polymer coated steel, totally air tightness for outdoor installation.
·EC motors enable integration of several fans into a unified networks and their centralized control.
·Backward impeller with high efficient electronically commutated (EC) direct current motor with external rotor. Turbine is dynamically balanced while assembly.
·Motors are equipped with ball bearings for longer service life of the fan (40.000 hours). IP 44 motor protection index.

APPLICATIONS
·Designed for supply and exhaust ventilation and air conditioning systems for various premises requiring cost-effective solution and controllable ventilation.
·Inside or outside duct installation.
·EC motors reduce energy demand by about 35% and ensure high aerodynamic performance and low noise level. Specially designed for ventilation of public premises such as:
banks
supermarkets
restaurants
hotels

·Its use is also contemplated in installations close to residential buildings and for domestic applications, such as the ventilation of private swimming pools.

UNDER REQUEST

• Sizes from 200 to 315 can be supplied with a metal impeller.

Code Name
510310000 BT-3 100 EEC
510312500 BT-3 125 EEC
510315000 BT-3 150 EEC
510316000 BT-3 160 EEC
510320000 BT-3 200 EEC
510325000 BT-3 250 EEC
510331500 BT-3 315 EEC
