MEDIUM PRESSURE FAN WITH BACKWARD IMPELLER 400ºC/2H CERTIFIED INSIDE THE HAZARDOUS AREA

MANUFACTURING FEATURES

• Medium pressure centrifugal fan with direct coupling.
• Reinforced housing made of carbon laminated steel, protected against corrosion by powder coating polyester resin RAL 5010. Finish C3.
• Casing fully latched and adjustable.
• Self-cleaning turbine and reinforced impeller with high-performance backward (reaction) blades made of carbon laminated steel dynamically balanced to minimize noise and vibrations. Graffiti black RAL 9005.
• Motor with S1 service class for continuous operation and approved 400ºC / 2h for service class S2. IEC standardized asynchronous squirrel-cage motor with IP-55 protection and electrical insulation class H. Standard voltages 230/400V 230/400V 50Hz in three phase motors up to 3kW and 400 50Hz for higher powers.
• Motor with foot (B3) supported on motor support foot.

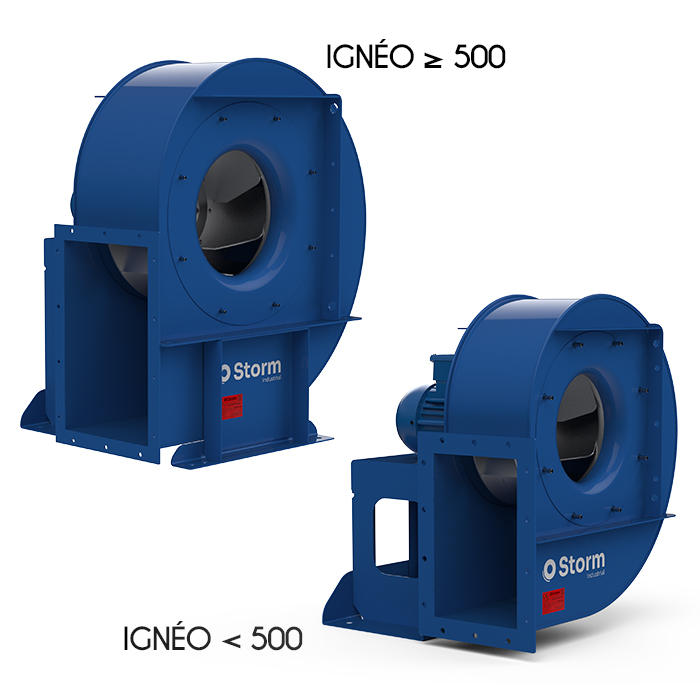

• Models of size 500 and above are supplied with a front support foot, for the other models the front support foot is optional.
• Inspection door to facilitate maintenance and cleaning.
• Available in the following orientations (to be indicated in case of order): LG0, LG45, LG90, LG135, LG180; LG225, LG270, LG315, RD0, RD45, RD90, RD135, RD180; RD225, RD270, RD315.
• Maximum working temperature in continuous: air transported: 130ºC (service S1) and 400ºC/2h (service S2), andmaximum environment temperature: 60ºC.

APPLICATIONS

Installation in conduit for the impulsion or aspiration of clean and dusty air in:
• Big buildings
• Malls
• Factories / Industrial buildings
• Warehouses
• Parking lots
• Catering / Hospitality
• Extraction of smoke
• Boilers and ovens
• Manufacture and treatment of chemical products.
• Tunnels, underground stations.

UNDER REQUEST

• Fans to work at 60Hz and special voltages.
• 2 speed motor.
• C4-C5
• Hot dip galvanized
• Fully welded housing (watertight)
• Drain plug



Official homologation by the European laboratory APPLUS according to EN 12101-3:2015

Code Name
IG5614100 IGNÉO 561 T4 3kW
IG7116132 IGNÉO 711 T6 3kW
IG451490 IGNÉO 451 T4 1,1kW
IG501490 IGNÉO 501 T4 1,5kW
IG6314132 IGNÉO 631 T4 5,5kW
IG6316100 IGNÉO 631 T6 1,5kW
IG7114132 IGNÉO 711 T4 7,5kW
IG311480 IGNÉO 311 T4 0,55kW
IG351480 IGNÉO 351 T4 0,55kW
IG401480 IGNÉO 401 T4 0,55kW
IG501680 IGNÉO 501 T6 0,55kW
IG561690 IGNÉO 561 T6 0,75kW
