CENTRIFUGAL FAN WITH BACKWARD IMPELLER, DIRECT DRIVEN WITH FEET MOTOR (B3).


MANUFACTURING FEATURES


• Medium pressure centrifugal fan with direct coupling.
• Reinforced housing made of carbon laminated steel, protected against corrosion by powder coating polyester resin RAL 5010. Finish C3.
• Casing fully latched and adjustable.
• Self-cleaning turbine and reinforced impeller with high-performance backward (reaction) blades made of carbon laminated steel dynamically balanced to minimize noise and vibrations. Black painted RAL 9005
• Squirrel cage standardized asynchronous IEC motor with IP-55 protection and class F electrical insulation. Standard voltages 230/400V 50Hz for three-phase motors up to 4kW and 400/690V 50Hz for higher powers.
• Motor with feet (B3) supported on motor support foot.

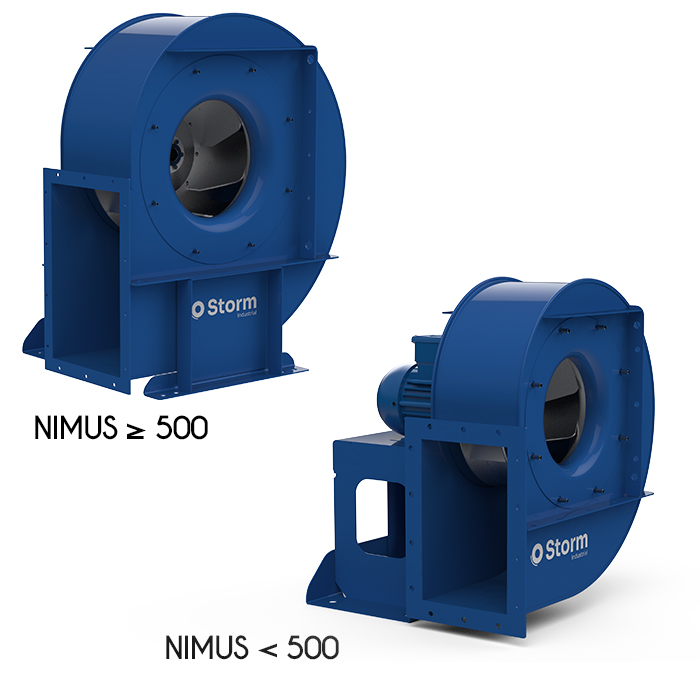

• Models of size 500 and above are supplied with a front support foot, for the other models the front support foot is optional.
• Available in the following orientations (to be indicated in case of order): LG0, LG45, LG90, LG135, LG180; LG225, LG270, LG315, RD0, RD45, RD90, RD135, RD180; RD225, RD270, RD315.
• Maximum working temperature in continuous: air transported: 130ºC,
Environment: 60ºC.

APPLICATIONS

Suitable for moving clean or dusty air. Designed to be installed in conduit for suction or impulsion.

  •      Paint booths
  •      Collection of dust
  •      Food industry dryers
  •      Food processing
  •      Incineration
  •      Odor control in industry
  •      Indoor / outdoor pollution control
  •      Big buildings
  •      Malls
  •      Factories / Industrial buildings
  •      Warehouses
  •      Extraction of smoke
  •      Boilers and ovens
  •      Manufacture and treatment of chemical products.
  •      Tunnels, underground stations.

ON DEMAND


· Fans for 60Hz and special voltages.
· 2 speed motor.
· C4 or C5 coating painting
· Hot dip galvanized
· Inox 304 (normal or electropolished finish)
· Inox 316 (normal or electropolished finish)
· Cooling wheel
· Anticaloric paint
· Fully welded housing (waterproof)
· Inspection door to facilitate maintenance and cleaning
· Drain plug.
· Airtight axle
· Non-sparking air passage and standard motor
· Other brands of motors.



Code Name
NS4012100 NIMUS 401 T2 3kW
NS4022112 NIMUS 402 T2 4kW
NS5624100 NIMUS 562 T4 3kW
NS6314112 NIMUS 631 T4 4kW
NS7126132 NIMUS 712 T6 3kW
NS8016132 NIMUS 801 T6 4kW
NS9018132 NIMUS 901 T8 3kW
NS9028160 NIMUS 902 T8 4kW
NS501611281 MBRL 1121 T6 30kW
NS501611282 MBRL 1122 T6 37kW
NS501612586 MBRL 1251 T6 55kW
NS501612588 MBRL 1252 T6 75kW
NS501614106 MBRL 1401 T6 90kW
NS5012160 NIMUS 501 T2 11kW
NS5022160 NIMUS 502 T2 11kW
NS8014160 NIMUS 801 T4 15kW
NS8024160 NIMUS 802 T4 15kW
NS9014200 NIMUS 901 T4 30kW
NS9024200 NIMUS 902 T4 30kW
NS9026160 NIMUS 902 T6 11kW
NS501614107 MBRL 1402 T6 110kW
NS10014225 NIMUS 1001 T4 45kW
NS10016180 NIMUS 1001 T6 15kW
NS10024225 NIMUS 1002 T4 45kW
NS10026180 NIMUS 1002 T6 15kW
NS311280 NIMUS 311 T2 1,1kW
NS312280 NIMUS 312 T2 1,1kW
NS351290 NIMUS 351 T2 2,2kW
NS352290 NIMUS 352 T2 2,2kW
NS4512132 NIMUS 451 T2 7,5kW
NS4522132 NIMUS 452 T2 7,5kW
NS452490 NIMUS 452 T4 1,1kW
NS501490 NIMUS 501 T4 1,5kW
NS502490 NIMUS 502 T4 1,5kW
NS5614100 NIMUS 561 T4 2,2kW
NS6316100 NIMUS 631 T6 1,5kW
NS6324132 NIMUS 632 T4 5,5kW
NS6326100 NIMUS 632 T6 1,5kW
NS7114132 NIMUS 711 T4 7,5kW
NS7116112 NIMUS 711 T6 2,2kW
NS7124132 NIMUS 712 T4 9,2kW
NS8018132 NIMUS 801 T8 2,2kW
NS8026132 NIMUS 802 T6 5,5kW
NS8028132 NIMUS 802 T8 2,2kW
NS9016160 NIMUS 901 T6 7,5kW
NS10018160 NIMUS 1001 T8 5,5kW
NS10028160 NIMUS 1002 T8 5,5kW
NS311471 NIMUS 311 T4 0,37kW
NS312471 NIMUS 312 T4 0,37kW
NS351471 NIMUS 351 T4 0,37kW
NS352471 NIMUS 352 T4 0,37kW
NS401480 NIMUS 401 T4 0,55kW
NS402480 NIMUS 402 T4 0,55kW
NS451480 NIMUS 451 T4 0,75kW
NS501680 NIMUS 501 T6 0,37kW
NS502680 NIMUS 502 T6 0,55kW
NS561690 NIMUS 561 T6 0,75kW
NS562690 NIMUS 562 T6 0,75kW
