BOX BD FILTER (110V)

BOX BD FILTER (110V)

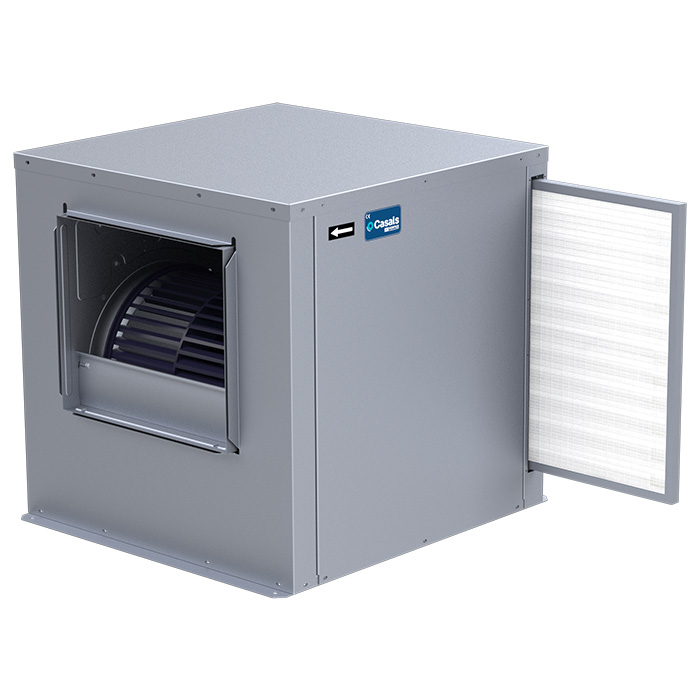

CENTRIFUGAL IN SOUNDPROOF CABINET WITH FILTER

MANUFACTURING FEATURES:

• Impellers made of polyamide reinforced with fiberglass.
•BD range fans assembled in soundproof cabinets with thermo-acoustic insulation, Bs1d0 fire class on the supply panel.
• Fan assembled on antivibration mountings.
• Connection gland included.
•Closed motors specially designed by Casals with extruded aluminum housing, which make the whole connection is protected within the integrated terminal box on the motor. Motor with IP55 protection and Class F insulation standard voltages: 110V 60Hz

BOX with integrated ISO Coarse≥60% (G4) filter. Removable filter frame from both sides of the box for better maintenance. Replaceable ans whasable filtering foam. Optimized suctoning air inlet to maximize the performance of the fan.

APPLICATIONS:

Designed for inline installation, indoor or outdoor assembly, they are suitable for:
• Air renewal in buildings and industries.
• Industrial and professional kitchen hoods. Use in supply or extraction with prior fat filtering.
• Maximum working temperature: 50ºC.

UNDER REQUEST:

• LG0 position.
• Impellers made of galvanised steel sheet.

(*) The data shown correspond to measurements made without the filters installed.

Code Name
251100351STC61 BOX BD FILTER 7/7 M4 0,2kW (110V)
251160351STC61 BOX BD FILTER 7/7 M6 0,07kW (110V)
251220351STC61 BOX BD FILTER 9/9 M4 0,60kW (110V)
251280351STC61 BOX BD FILTER 9/9 M6 0,20kW (110V)
251370351STC61 BOX BD FILTER 10/10 M6 0,37kW (110V)
251520351STC61 BOX BD FILTER 12/12 M6 1,36kW (110V)
