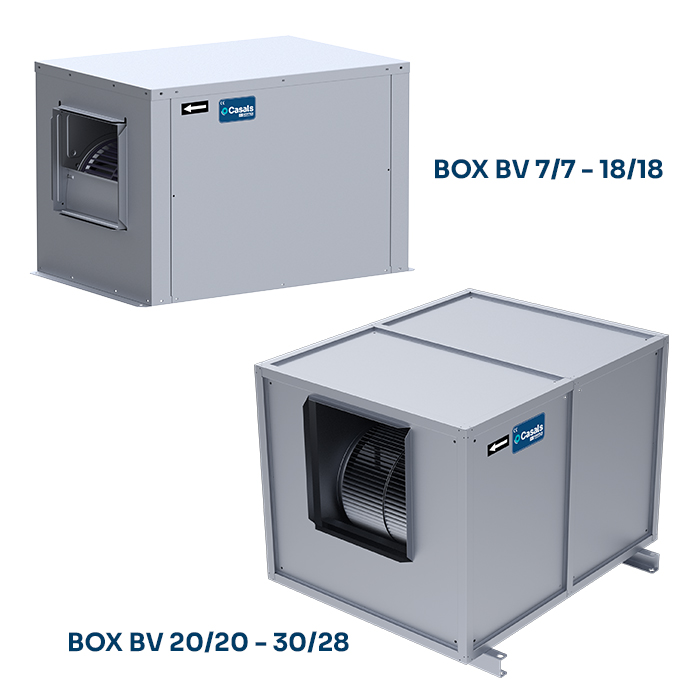

BOX BV

BOX BV

BELT DRIVEN CENTRIFUGAL IN SOUNDPROOF CABINET

MANUFACTURING FEATURES:

• Impellers made of polyamide reinforced with fiberglass up to size 12/12 (33/33). The rest of models are made of galvanized steel sheet.
• BV, BVC, BVCR range fans assembles in soundproof cabinets with thermo-acoustic insulation, Bs1d0 fire class on the supply pannel.
• Fan assembled on antivibration mountings.
• Supplied with motor, pulleys and belts.
• Connection gland included.
.•Squirrel cage asynchronous standard motor, IP-55 protection and rated class F insulation. Standard voltages 230/400-460V 60Hz for three phase motors up to 4kW and 400/690V 60Hz for higher powers.

APPLICATIONS:

Designed for inline installation, indoor or outdoor assembly, they are suitable for:
• Air renewal in buildings and industries.
• Industrial and professional kitchen hoods.
• Maximum working temperature: 60ºC.

UNDER REQUEST:
• Special voltages.
• 2 SPEED MOTORS.
• Impellers made of galvanised steel sheet.
• LG0 position.

Code Name
BOX BV 7/7
BOX BV 9/9
BOX BV 10/10
BOX BV 12/12
BOX BV 15/15
BOX BV 18/18
BOX BV 20/20
BOX BV 22/22
BOX BV 25/25
BOX BV 30/28
