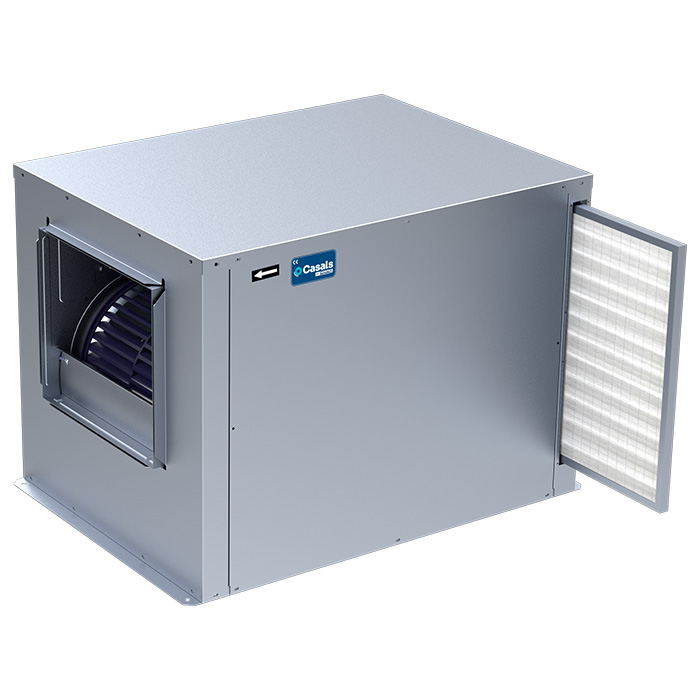

BOX BV FILTER

BELT DRIVEN CENTRIFUGAL IN SOUNDPROOF CABINET WITH FILTER

MANUFACTURING FEATURES:

• Impellers made of polyamide reinforced with fiberglass.
• BV range fans assembles in soundproof cabinets with thermo-acoustic insulation, Bs1d0 fire class on the supply panel.
• Fan assembled on antivibration mountings.
• Supplied with motor, pulleys and belts.
• Connection gland included.
.•Squirrel cage asynchronous standard motor, IP-55 protection and rated class F insulation. Standard voltages 230/400-460V 60Hz for three phase motors up to 4kW and 400-460/690V 60Hz for higher powers.
• BOX with integrated MERV 6 (G4) filter. Removable filter frame from both sides of the box for better maintenance. Replaceable ans whasable filtering foam. Optimized suctoning air inlet to maximize the performance of the fan.

APPLICATIONS:

Designed for inline installation, indoor or outdoor assembly, they are suitable for:
• Air renewal in buildings and industries.
• Industrial and professional kitchen hoods.
• Maximum working temperature: 60ºC.

UNDER REQUEST:
• Special voltages.
• 2 Speed motors
• Impellers made of galvanised steel sheet.
• LG0 position.

(*) The data shown correspond to measurements made without the filters installed.

This product meets AMCA ratings for airflow/pressure and sound according to catalogue VIAC 001
