BT-3

BT-3

CENTRIFUGAL IN LINE WITH EXTERNAL ROTOR MOTOR

MANUFACTURING FEATURES:

• Housing in galvanized sheet.
• Backward impeller dynamically balanced.
• External connection box.
• Single-phase asynchronous motor with external rotor, including thermal protector for automatic resetting and long-life permanent lubrication ball bearings (40,000 hours). Protection IP-44. Standard voltage 230V 50/60Hz (except 315 size which has different motor at 50Hz than 60Hz)
• Supplied with support feet (optional mounting)

APPLICATIONS:

Designed for duct installation, suitable for false ceiling, are indicated for:
• Renovation of air in bathrooms and small rooms.
• Maximum continuous working temperature: 50ºC.
• Fan not suitable for transporting explosive gases.

Code Name
509810000 BT-3 100
509812500 BT-3 125
509815000 BT-3 150
509816000 BT-3 160
509820000 BT-3 200
509825000 BT-3 250

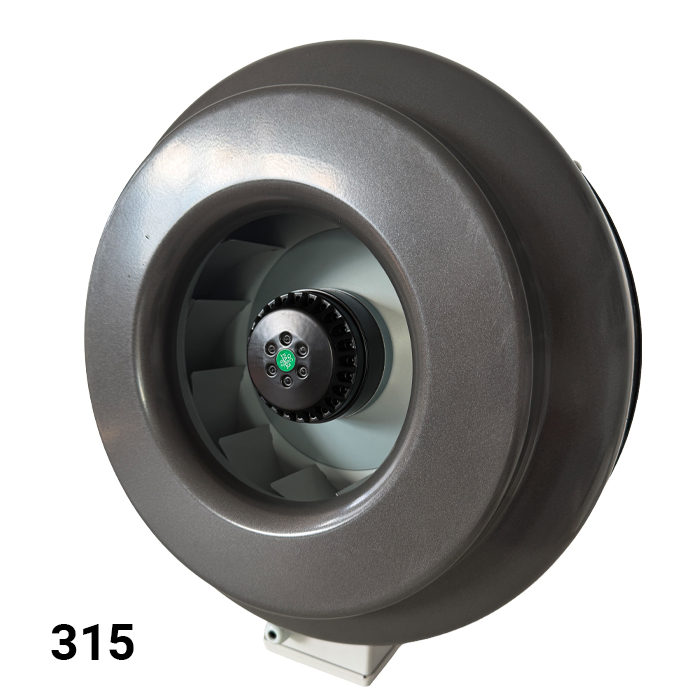

509831560 BT-3 315
