MB 31/12-45/18

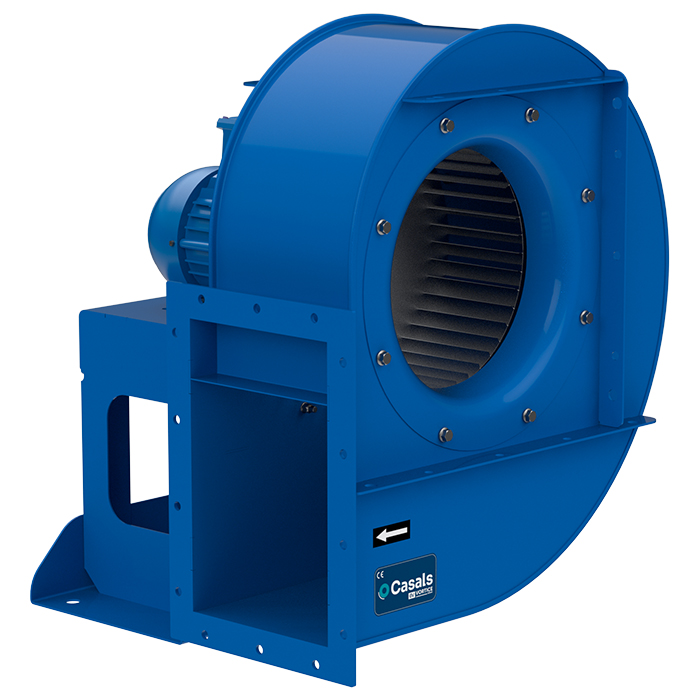

MEDIUM PRESSURE CENTRIFUGAL FAN WITH FORWARD IMPELLER

MANUFACTURING FEATURES:

• Medium pressure centrifugal fan with direct coupling.
• Reinforced housing made of carbon laminated steel, protected against corrosion by powder coating polyester resin RAL 5010. Finish C3.
• Completely joined or welded housing.
• Galvanised steel sheet simple inlet forward curved impeller.
• Standard asynchronous squirrel-cage motor with IP-55 protection and Class F insulation. Manufactured with standard voltages: 230/400-460V 60Hz for three phase motors up to 4kW and 400-460/690V 60Hz for higher powers
• Available positions (to be indicated in case of order): LG270, LG0, LG45, LG90, LG135, LG180, LG225, LG315, RD0, RD45, RD90, RD135, RD180, RD225, RD270, RD315.
• The indicated codes correspond to the model in position LG270

APPLICATIONS:

Designed for inline installation, they are suitable for:
• Industrial applications, extraction or injection of air.
• Cooling of machines and parts.
• Suitable for transporting totally clean air without dust.
• Maximum working temperature: carried air: 130ºC, environment 60ºC.

UNDER REQUEST:

• Special voltages.
• 2 speed motors.
•Fan for air working temperatures up to 250ºC.
• Fans provided with cooling disk for high temperature.
• Option with front support.
