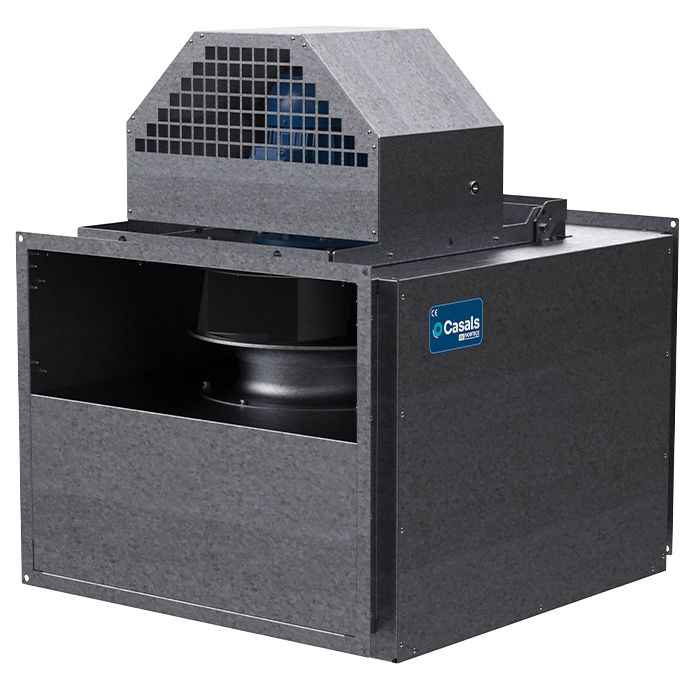

KENTALMAT PLUS

INSULATED BACKWARD IN-LINE FAN FOR CONTINUOUS OPERATION UP TO 120°C

MANUFACTURING FEATURES
Casing

• Available in galvanized steel sheet or Magnelis® steel, a high corrosion-resistant metallic coating equivalent to a C5 finish. Connection flanges and inspection door included.
• In-line configuration with airtight panels and 40 mm rock wool insulation.
• Inspection cover for easy access to the impeller for cleaning and maintenance.
• Hinged opening system for the motor–impeller assembly, allowing maintenance without dismantling the casing. Opening positions at approximately 45° and 90°.

Impeller

• High-efficiency backward-curved blade impeller.
• Designed to operate without volute or scroll.
• Self-cleaning design, statically balanced.
• Manufactured from galvanised steel with anti-corrosion treatment.
• Direct driven.

Motor

• Motor with flange (B5) and waterproof shaft.
• Standard asynchronous squirrel-cage motor.
• Protection rating IP55, insulation class F.
• Standard asynchronous squirrel cage motor with IP-55 protection and Class F insulation. Standard voltages 230V 50Hz for single-phase andmotors 230/400V 50Hz and 400/690V 50Hz for single-speed, 400V 50Hz three-phase motors 50Hz for the 2 speeds.

APPLICATIONS

• Ventilation and smoke extraction in covered car parks.
• Ventilation of technical rooms, industrial premises, commercial spaces and kitchens.
• Maximum continuous working temperature: transported air 120ºC, ambient 60ºC to -25ºC in three-phase motors and 50ºC to -25ºC in single-phase motors.
