BACKWARD CENTRIFUGAL FAN, FOR CLEAN OR SLIGHTLY DUSTY AIR

MANUFACTURING FEATURES

• Medium pressure centrifugal fan with direct coupling.
• Reinforced housing made of carbon laminated steel, protected against corrosion by powder coating polyester resin RAL 5010. Finish C3.
• Casing fully latched and adjustable.
• Self-cleaning turbine and reinforced impeller with high-performance backward (reaction) blades made of carbon laminated steel dynamically balanced to minimize noise and vibrations. Black painted RAL 9005
• The size of the centrifugal impeller and casing is larger than a NIMUS , which increases the performance of the unit.
• Squirrel cage standardized asynchronous IEC motor with IP-55 protection and class F electrical insulation. Standard voltages 230/400V 50Hz for three-phase motors up to 4kW and 400/690V 50Hz for higher powers.
• Motor with feet (B3) supported on motor support foot.

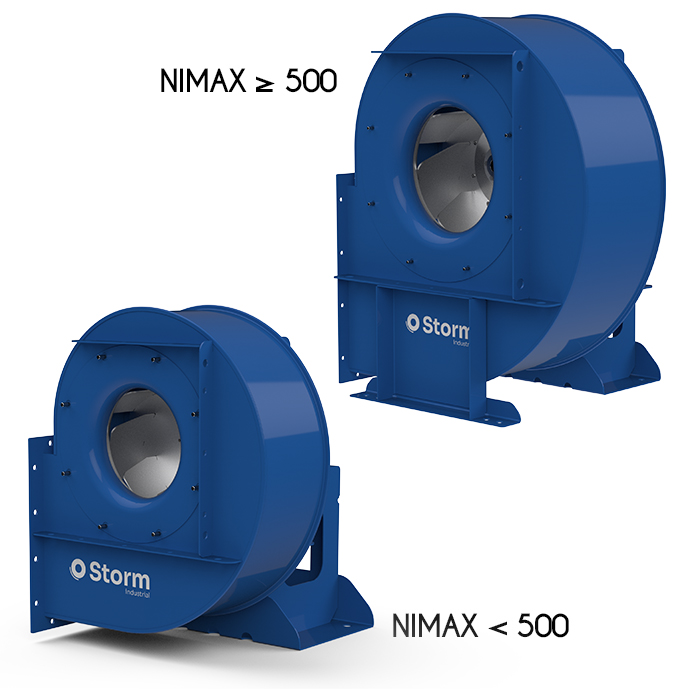

• Models of size 500 and above are supplied with a front support foot, for the other models the front support foot is optional.
• Available in the following orientations (to be indicated in case of order): LG0, LG45, LG90, LG135, LG180; LG225, LG270, LG315, RD0, RD45, RD90, RD135, RD180; RD225, RD270, RD315.
• Maximum working temperature in continuous: air transported: 130ºC,
Environment: 60ºC.

APPLICATIONS

Suitable for moving clean or dusty air. Designed to be installed in conduit for suction or impulsion.

  •      Paint booths.
  •      Collection of dust.
  •      Food industry dryers.
  •      Food processing.
  •      Incineration.
  •      Odor control in industry.
  •      Indoor / outdoor pollution control.
  •      Big buildings.
  •      Malls.
  •      Factories / Industrial buildings.
  •      Warehouses.
  •      Extraction of smoke.
  •      Boilers and ovens.
  •      Manufacture and treatment of chemical products.
  •      Tunnels, underground stations.

ON DEMAND

· Fans for special voltages.
· 2 speed motor.
· C4 or C5 coating painting
· Hot dip galvanized
· Inox 304 (normal or electropolished finish)
· Inox 316 (normal or electropolished finish)
· Cooling wheel
· Anticaloric paint
· Fully welded housing (waterproof)
· Inspection door to facilitate maintenance and cleaning
· Drain plug.
· Airtight axle
· Non-sparking air passage and standard motor
· Other brands of motors.

Code Name
NX3542100 NIMAX 354 T2 3kW
NX4032112 NIMAX 403 T2 4kW
NX5634100 NIMAX 563 T4 3kW
NX5644100 NIMAX 564 T4 3kW
NX7136132 NIMAX 713 T6 3kW
NX7146132 NIMAX 714 T6 3kW
NX9038160 NIMAX 903 T8 4kW
NX9048160 NIMAX 904 T8 4kW
NX4542132 NIMAX 454 T2 11kW
NX5032160 NIMAX 503 T2 15kW
NX5042160 NIMAX 504 T2 15kW
NX7134132 NIMAX 713 T4 11kW
NX7144160 NIMAX 714 T4 11kW
NX9034200 NIMAX 903 T4 30kW
NX9036160 NIMAX 903 T6 11kW
NX9044225 NIMAX 904 T4 37kW
NX9046160 NIMAX 904 T6 11kW
NX10034250 NIMAX 1003 T4 55kW
NX10036180 NIMAX 1003 T6 15kW
NX10044250 NIMAX 1004 T4 55kW
NX313290 NIMAX 313 T2 1,5kW
NX314290 NIMAX 314 T2 1,5kW
NX353290 NIMAX 353 T2 2,2kW
NX4042132 NIMAX 404 T2 5,5kW
NX4532132 NIMAX 453 T2 7,5kW
NX453490 NIMAX 453 T4 1,1kW
NX454490 NIMAX 454 T4 1,1kW
NX503490 NIMAX 503 T4 1,5kW
NX5044100 NIMAX 504 T4 2,2kW
NX563690 NIMAX 563 T6 1,1kW
NX564690 NIMAX 564 T6 1,1kW
NX6334132 NIMAX 633 T4 5,5kW
NX6336100 NIMAX 633 T6 1,5kW
NX6344132 NIMAX 634 T4 5,5kW
NX6346112 NIMAX 634 T6 2,2kW
NX8036132 NIMAX 803 T6 5,5kW
NX8038132 NIMAX 803 T8 2,2kW
NX8046132 NIMAX 804 T6 5,5kW
NX8048132 NIMAX 804 T8 2,2kW
NX10038160 NIMAX 1003 T8 7,5kW
NX10048160 NIMAX 1004 T8 7,5kW
NX313471 NIMAX 313 T4 0,37kW
NX314471 NIMAX 314 T4 0,37kW
NX353471 NIMAX 353 T4 0,37kW
NX354471 NIMAX 354 T4 0,37kW
NX403480 NIMAX 403 T4 0,55kW
NX404480 NIMAX 404 T4 0,55kW
NX503680 NIMAX 503 T6 0,55kW
NX504680 NIMAX 504 T6 0,55kW
NX8034180 NIMAX 803 T4 18,5kW
NX8044180 NIMAX 804 T4 18,5kW
NX10046200 NIMAX 1004 T6 18,5kW
