HAUT BLAST & HAUT BLAST PLUS – The power of air at the highest level
The HAUT BLAST & HAUT BLAST PLUS roof fans was designed in response to a clear demand: maximum performance in a single unit. Instead of installing multiple fans to achieve the same airflow and pressure, HAUT BLAST & HAUT BLAST PLUS provides unmatched air flow and pressure for the most demanding industrial applications.
HAUT BLAST PLUS version
With acoustic insulation for noise-sensitive environments.
Why choose HAUT BLAST & HAUT BLAST PLUS?
Unrivalled power
-
Maximum airflow: Up to 64.100 m³/h (40% more than our most powerful model to date).
-
Static pressure: 3.000 Pa, four times more than our most powerful model to date.
Optimized efficiency
-
Aerodynamic vertical discharge design to maximize performance.
-
Fully rain-tight, ideal for extreme climates.
-
Optimized for efficient installation on roofs and decks without the need for additional accessories.
Optimised efficiency
-
High-performance, self-cleaning, jet-bladed steel impeller.
-
Anti-corrosion aluminium housing, designed for demanding environments.
-
Suitable for air up to 120°C and ambient temperatures up to 60°C.
Comparison with other options in the catalogue
|
Features |
HAUT BLAST & PLUS |
Current models |
|
Caudal máximo |
64.100 m³/h |
39.600 m³/h |
|
Presión estática |
3.000 Pa |
700 Pa |
|
Peso |
Hasta 959 Kg |
411 Kg |
⚠️ To consider
-
Heavy weight: Up to 959 kg depending on model, significantly more robust than other options in catalogue.
-
Specialised installation: May require reinforced support structures on certain roof types.
Versatile applications
-
Smoke extraction in industrial environments.
-
Air renewal in buildings and factories.
-
Industrial extractor hoods in professional kitchens.
-
Ventilation in cinemas and large closed spaces.

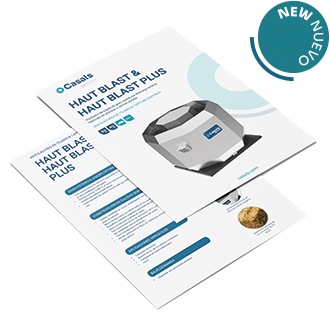

download PDF
