FOCCETA

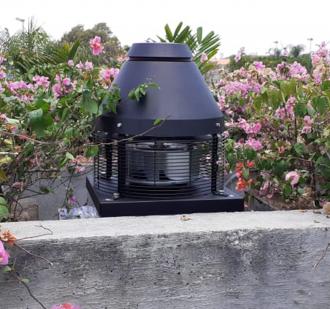

FOCCETA, the smoke extractor for chimneys designed exclusively by Casals. Considered as a roof fan, it is ideal for extraction of chimneys, fireplaces and barbecues. It can operate at elevated temperatures (up to 200°C) continuously.

Its steel structure with black epoxy coating to prevent corrosion, makes it suitable for staying outdoors.
The compact and attractive design allows its use in houses and barbecues to be totally discreet.

Constructive features:
  • Backward curved impeller with dynamically balanced self-cleaning aluminium blades (UNI ISO 1940, Point 1 – Class 6.3).
  • Protection grille with anti-bird rings (in accordance with UNI ISO 13857 standard), made of electrically welded steel; epoxy paint finish, colour black.
  • Base manufactured from phosphated pressed steel, epoxy powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
  • Aerodynamically contoured inlet port for optimum performance, fashioned as a single unit with the base and gauged to optimize air flow.
  • Sub-frame for fixing the appliance to the flue stack.
  • Equipped with steel safety wire for anchoring the appliance once installed.

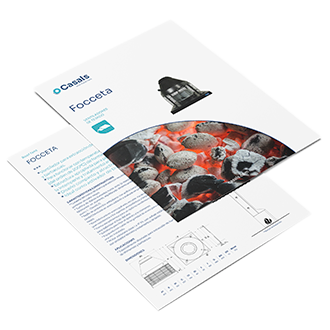

download PDF
